Crossed roller bearings are pivotal components in various advanced machinery and equipment designs, amplifying mechanical performance and precision. Among the numerous types available, the SX series stands out due to its unique configuration and operational characteristics. This article aims to delve into the SX series of crossed roller bearings, highlighting their prominent features, widespread applications, significant advantages, and common models.

Features of SX Series Crossed Roller Bearings

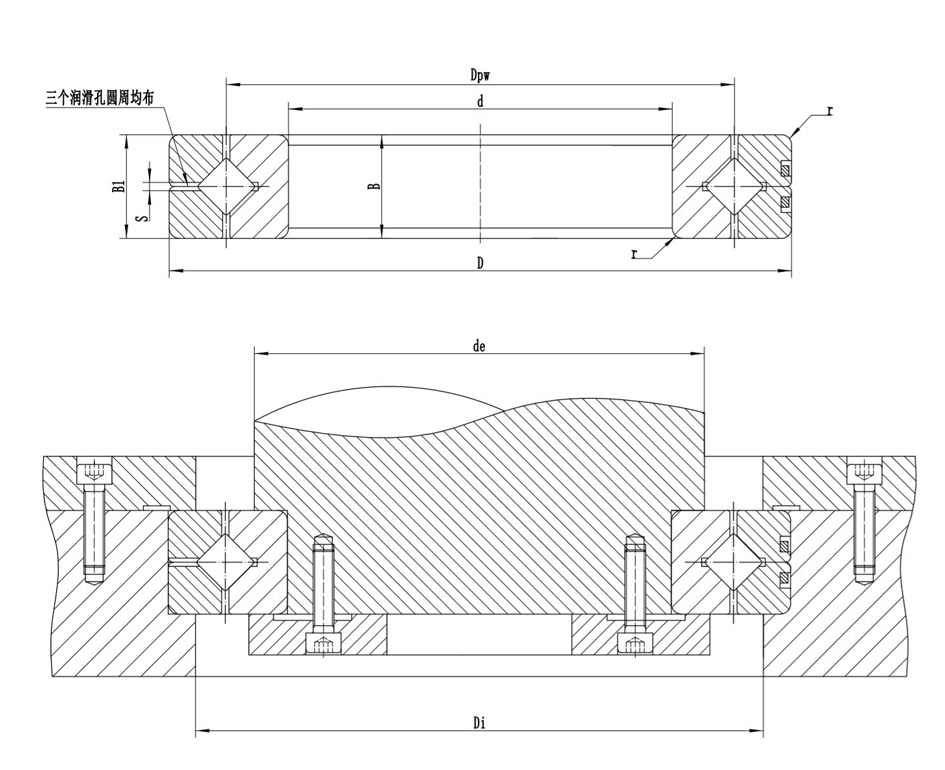

The SX series of crossed roller bearings is distinguished by its innovative design, comprising cylindrical rollers arranged in a crossed pattern. This configuration enables the bearing to support loads in multiple directions, including both axial and radial loads, without sacrificing rigidity.

1. Compact Design: One of the standout characteristics of the SX series is its compact and lightweight structure. The thin-profile design allows for installation in space-constrained environments without compromising performance.
2. High Load Capacity: The crossed roller arrangement facilitates a high load-bearing capacity. This design results in a more uniform distribution of loads, enhancing stability during operation.
3. Low Friction: The interleaved roller design minimizes contact surface area, thereby reducing friction and improving efficiency. This is particularly advantageous in applications where energy savings are paramount.
4. Precision: SX series bearings are manufactured to stringent tolerances, ensuring high precision in rotational applications. This level of accuracy is critical for machinery that requires exact positioning.

Applications of SX Series Crossed Roller Bearings

The versatility of the SX series makes it suitable for a broad array of applications across various industries. Notable applications include:

1. Robotics: In robotic arms and joints, SX series bearings provide the necessary precision and load capacity, allowing for smooth, accurate movements.
2. Medical Equipment: Surgical robots and imaging equipment benefit from the reliability and efficiency offered by SX bearings, ensuring precise operation in critical environments.
3. CNC Machines: For manufacturing, particularly in CNC (Computer Numerical Control) machines, the ability of SX series bearings to handle multi-directional loads enhances machine longevity and performance.
4. Aerospace: In aerospace applications, where weight and performance are critical, the SX series provides robust solutions without adding unnecessary bulk.

Advantages of SX Series Crossed Roller Bearings

The advantages of selecting SX series bearings over other types can be enumerated as follows:

1. Enhanced Durability: The robust design contributes to longer service life, reducing downtime and maintenance costs.
2. Versatile Load Handling: Their ability to accommodate radial, axial, and moment loads simultaneously allows for innovative design solutions in complex machinery.
3. Space Efficiency: With their compact size, SX series bearings save space, which is crucial in high-density designs, enabling manufacturers to create smaller and more efficient machinery.
4. Cost-Effectiveness: While the initial investment may be higher than standard bearings, the long-term performance and reliability often lead to cost savings through reduced maintenance and replacement frequency.

Common Models of SX Series Crossed Roller Bearings

The SX series encompasses several models, each tailored for specific applications and load requirements. Some of the commonly referenced models include:

1. SX050: Ideal for applications with light loads and compact dimensions.
2. SX100: Offers a balance of load capacity and size, perfect for medium-load applications.
3. SX150: Designed for heavier-duty applications, this model can manage significant axial and radial loads with ease.

Each model is engineered for excellence and can be further customized based on specific operational demands.

Conclusion

The SX series of crossed roller bearings represents a pinnacle of engineering excellence, marrying precision, versatility, and durability. Their unique design makes them indispensable in advanced machinery across various industries, ranging from robotics to aerospace. By understanding the features, applications, advantages, and available models of SX series bearings, engineers and manufacturers can make informed decisions that enhance their projects’ efficiency and effectiveness. As technology evolves, the significance of these components will continue to grow, underscoring their role in the future of mechanical design and application.
