In the realm of precision engineering, the CRBH series cross roller bearings hold a pivotal role, especially in applications demanding high accuracy and rigidity. This blog post aims to provide a comprehensive overview of the CRBH series, discussing its unique characteristics, common applications, advantages, and frequently used models.

Characteristics of CRBH Series Cross Roller Bearings

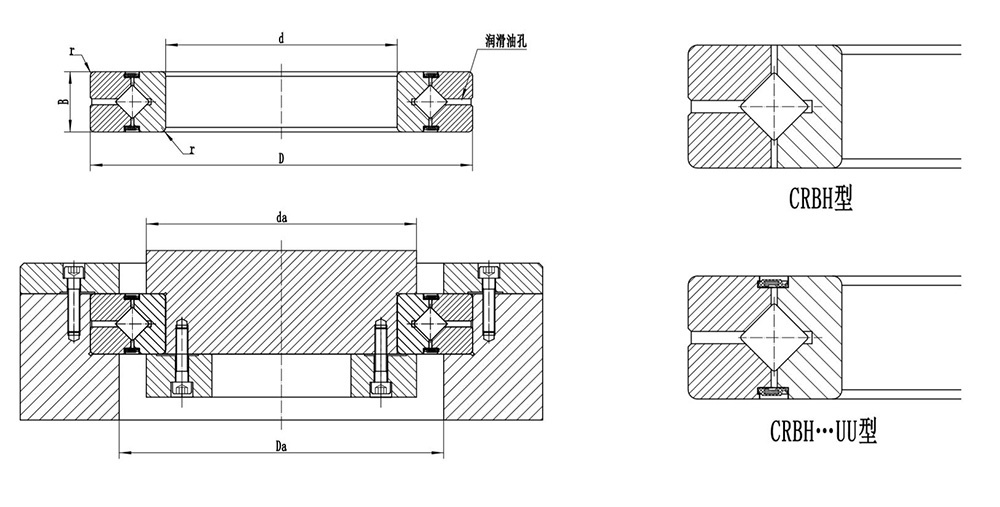

The CRBH series cross roller bearings, distinguishable by their innovative design, features cylindrical rollers arranged in a crisscross pattern. This configuration allows for the accommodation of loads in multiple directions, including radial, axial, and moment loads, making them exceptionally versatile.

1. High Load Capacity: With their unique roller arrangement, these bearings can support significantly higher loads compared to traditional ball bearings of the same size. The point contact of rollers minimizes stress concentration, enhancing load distribution.
2. Compact Size: The CRBH series bears a compact design, allowing for easy integration into tight spaces within machinery. Despite their small footprint, they provide remarkable robustness and durability.
3. Minimal Friction: The inherent design of cross roller bearings reduces friction between moving components, resulting in smoother operation and reduced energy consumption. This feature is crucial in applications where precision and speed are paramount.
4. Excellent Accuracy: Designed for high-performance requirements, CRBH series bearings offer superior positioning accuracy. Their capability to handle moment loads helps maintain precise alignment in rotational systems.

Applications of CRBH Series Cross Roller Bearings

The CRBH series finds its applications across various industries where precision and reliability are non-negotiable. Some of the most notable applications include:

1. Robotics: In robotic systems, these bearings are integral in joint mechanisms, ensuring smooth and accurate movement, which is essential for tasks requiring delicate handling.
2. Machine Tools: They are widely used in CNC machines, milling machines, and other equipment where high precision and rigidity are necessary for consistent manufacturing processes.
3. Optical Devices: The CRBH series is prevalent in optical systems, including lenses and cameras, where maintaining focal accuracy is critical.
4. Medical Equipment: In medical devices, particularly those that require precise movements, such as surgical robots and diagnostic imaging equipment, CRBH series bearings ensure reliable performance.

Advantages of CRBH Series Cross Roller Bearings

The benefits of choosing CRBH series cross roller bearings extend beyond their structural design. Some of the key advantages include:

1. Increased Durability: The robust construction of these bearings ensures a longer operational life, reducing the need for frequent replacements and maintenance.
2. Heat Resistance: With the ability to withstand higher temperatures, CRBH bearings operate efficiently even under extreme conditions, making them suitable for diverse applications.
3. Ease of Installation: Their compact design allows for simple installation in various setups, minimizing the required assembly time and costs.
4. Versatile Compatibility: CRBH bearings are compatible with a wide range of shaft sizes and housing designs, providing flexibility in engineering applications.

Common Models of CRBH Series Cross Roller Bearings

When considering the CRBH series, several models are frequently used in various industrial applications. Some of the commonly implemented models include:

1. CRBH 2007: This model is popular for its compact size and high load-carrying capacity, making it suitable for several high-precision applications.
2. CRBH 2516: Known for its durability and excellent performance under heavy loads, this model is ideal for machine tool applications.
3. CRBH 3008: Often used in robotic joints, this model offers exceptional rotational accuracy and smooth operation.
4. CRBH 4020: Renowned for its ability to handle high moment loads, this model is predominantly used in optical and precision machinery.

Conclusion

The CRBH series cross roller bearings represent a significant advancement in bearing technology, providing exceptional performance across a variety of demanding applications. With their unique design features, broad applicability, and numerous advantages, these bearings are an ideal choice for engineers seeking reliable and precise solutions. As industries continue to evolve towards increased automation and precision, the importance of CRBH series bearings in maintaining operational efficiency and accuracy cannot be overstated. Whether you are designing a new piece of machinery or upgrading an existing system, consider incorporating the CRBH series cross roller bearings to enhance performance and reliability.
